DD2000 Drill Drive Kit | 2-1/4 in. Outer Tube

DD2000 Drill Drive Kit | 2-1/4 in. Outer Tube #1

DD2000 Drill Drive Kit | 2-1/4 in. Outer Tube #2

DD2000 Drill Drive Kit | 2-1/4 in. Outer Tube #3

DD2000 Drill Drive Kit | 2-1/4 in. Outer Tube #4

DD2000 Drill Drive Kit | 2-1/4 in. Outer Tube

Part Number 22245

Price: $149.99

Quantity

+

-

Manufactured in the USA

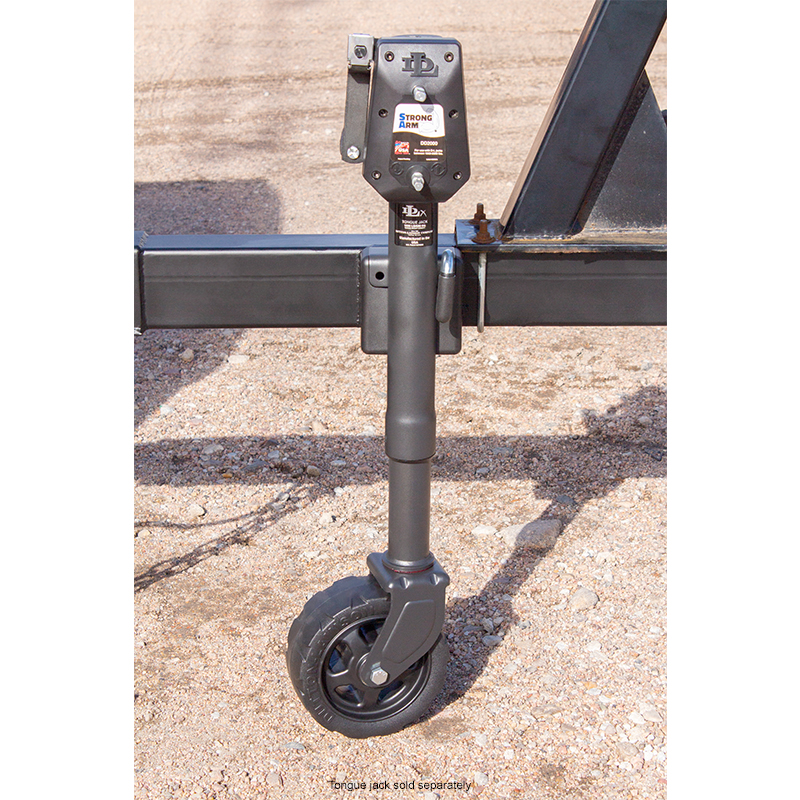

StrongArm® drill drive kit/gearbox for Dutton-Lainson® marine tongue jacks
For all D-L ag-industrial and marine jacks up to 2,000 lb. capacity with a 2-1/4" diameter round outer tube, and square outer tube models DLx-SW and DLx-SF
Dramatically reduces force and time necessary to deploy the tongue jack

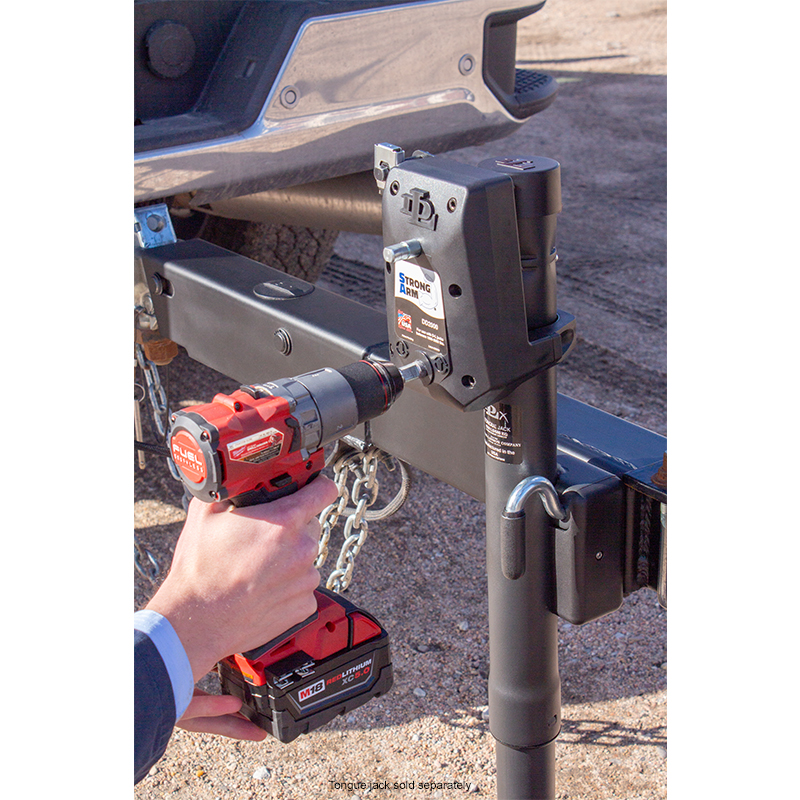

Triangular clutch shaft allows for direct connection with an electric drill for increased operating speed

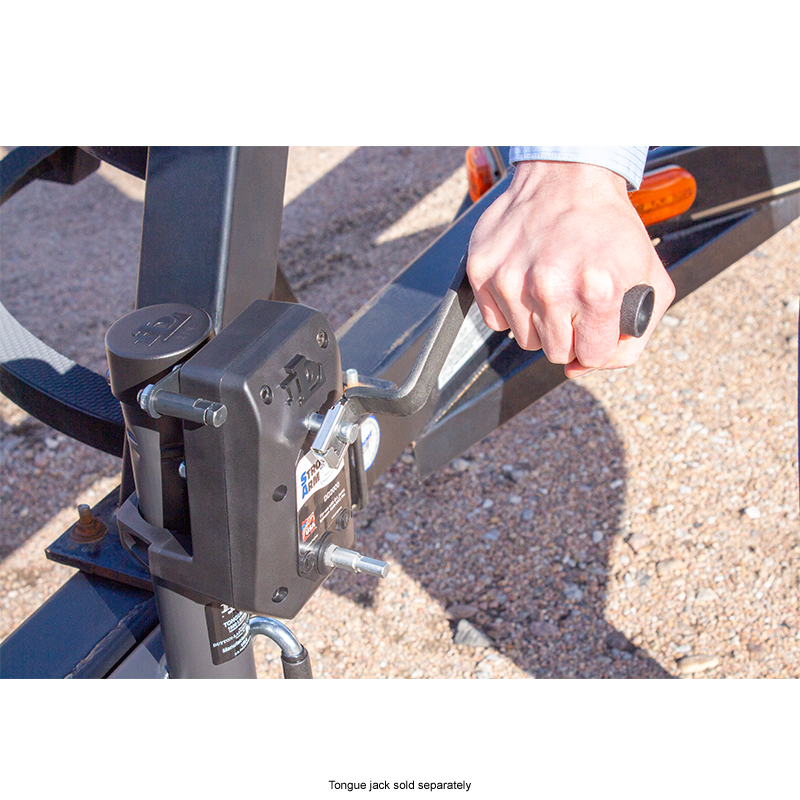

Also includes a 5" Quick-Attach handle that can be used on either shaft and stored on the side of the gearbox
Built-in slip clutch disengages the load when over-torqued to prevent damage or injury
Patent pending

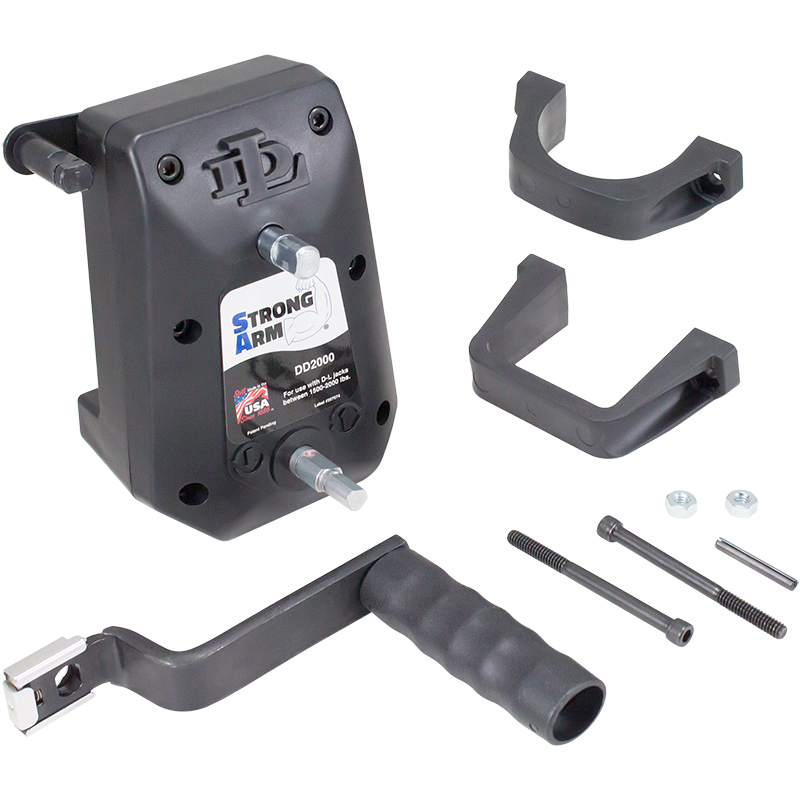

Includes a round bracket, a square bracket, two 1/4" x 3" socket head screws, two 1/4" hex nuts, and a 3/16" x 1-3/8" roll pin
Made in the U.S.A.
NOTE: Compatible for use with standard electric drills only. Do NOT use impact drivers.
NOTE: Firmly hold the electric drill with two hands when operating to minimize possibility of injury.

Dimensional Drawing
