DLB2500A Brake Winch | Bronze

Part Number 15722
Price: $228.99
Quantity
+
-
Manufactured in the USA5 Year Limited Warranty
  • NOTE: Item will arrive with either powder coated copper bronze or matte black finish. Functionality of the winch is identical regardless of finish.
  • Dutton-Lainson® brake winch for horizontal pulling and vertical lifting applications
  • 2,500 lb. capacity
  • 9-3/8" handle with ergonomic handle grip
  • Built in fully automatic friction brake holds load exactly in position when raising and lowering
  • Powder coated copper bronze finish, zinc plated TUFFPLATE® finish on hardware
  • Made in the U.S.A.
  • NOTE: This winch requires a 175 lb. minimum operating load to function properly.
Details

The Dutton-Lainson Company's self-locking brake winches provide safety, convenience, and control for multipurpose hauling and lifting jobs. The fully automatic friction brake supplies constant, positive holding action any time the handle is released (when cranking stops, the load stops), preventing runaway loads. Features of both DLB and B-series brake winches include:

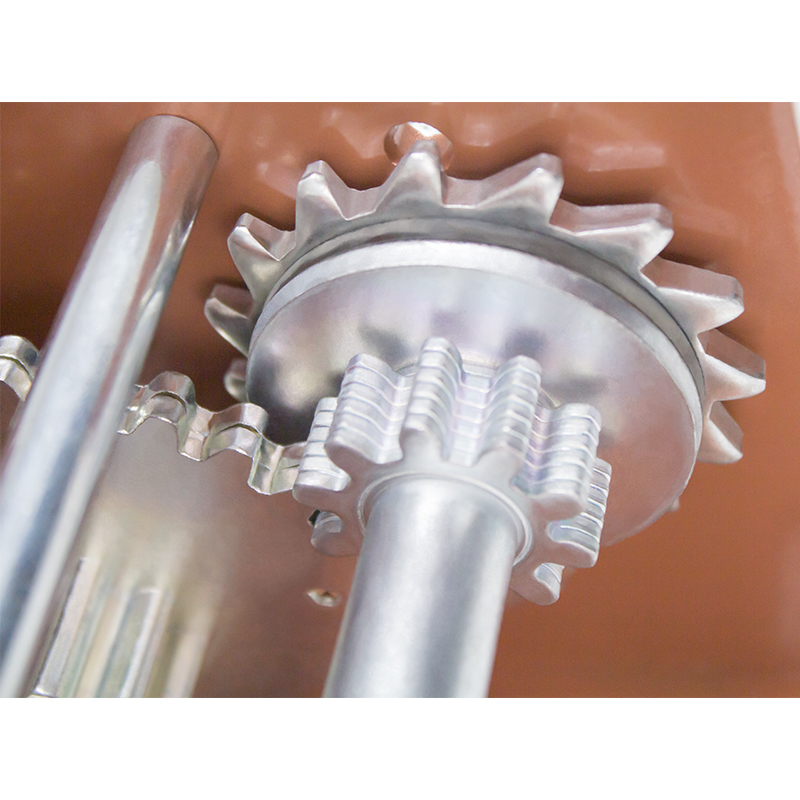

  • Laminated, high carbon steel gears for longer life
  • All gears in models DLB800A through B3503 are heat treated for increased strength
  • Permanently lubricated bearings on drive shafts are maintenance-free
  • Heavy duty steel handles with ergonomic molded grips
  • Drive shaft gears are copper brazed for durability
  • Rigid, welded reel construction for added strength
  • Load matched gear ratios for easier cranking
  • All plated parts are zinc plated TUFFPLATE® finish
  • Slotted mounting holes for easy installation
  • Heavy gauge embossed and reinforced steel bases for extra strength
  • Ratcheting handle is available when cranking space is limited
  • Meets ASAE Safety Standard S361.3
  • Can be operated with a large boat lift wheel (sold separately)
  • Handle is integral part of braking mechanism

All D-L brake winches are built for multipurpose hauling and lifting operations. They are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present.


DLB vs. B-Series Brake Winch Comparison

FeatureDLB-
Series
B1200sB1500s/
B2500s/
B3503
Four models available with optional freewheel lever to put in freewheel modeX
Accepts 2" wide strapX
Drive shaft gear teeth and reel gear teeth are induction hardened for increased strengthXX
All gear and shaft surfaces are case hardened for maximum strengthX
Larger 8 pitch gear teeth for increased strengthX
Largest 6 pitch gear teeth for maximum strengthX
Multiple drum hub diameter options for increased lifting and pulling speedXX
Standard 12-1/4" handleXX
Braking mechanism protected by external coverXX
All drive gears protected by external coverX
Internal reel gears for more gear contact (reduces wear and increases strength)X
Drive shaft needle bearings to reduce wearX
Intended for a higher frequency and duration of useX
