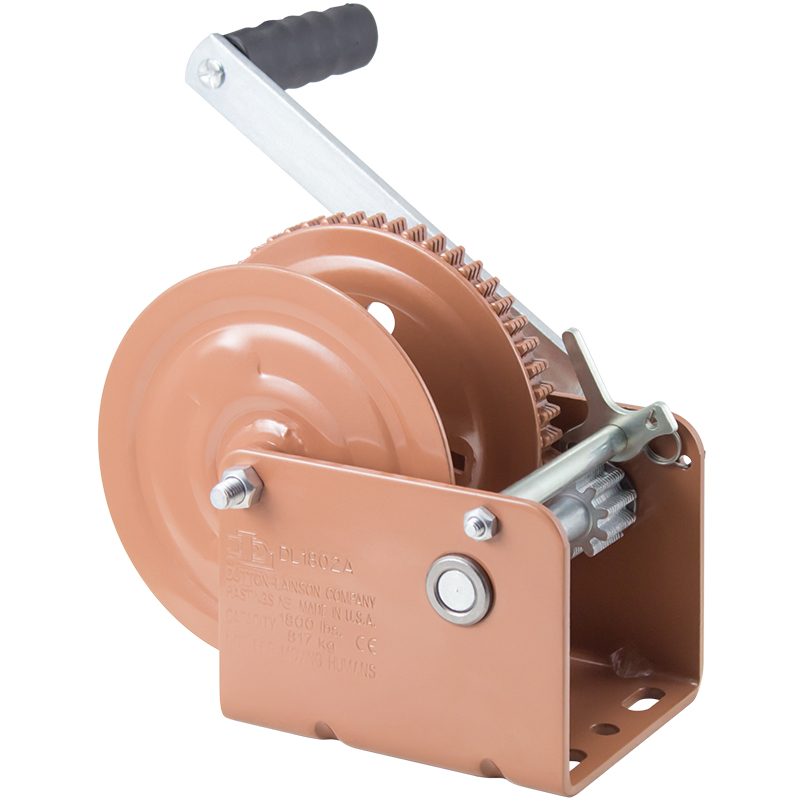

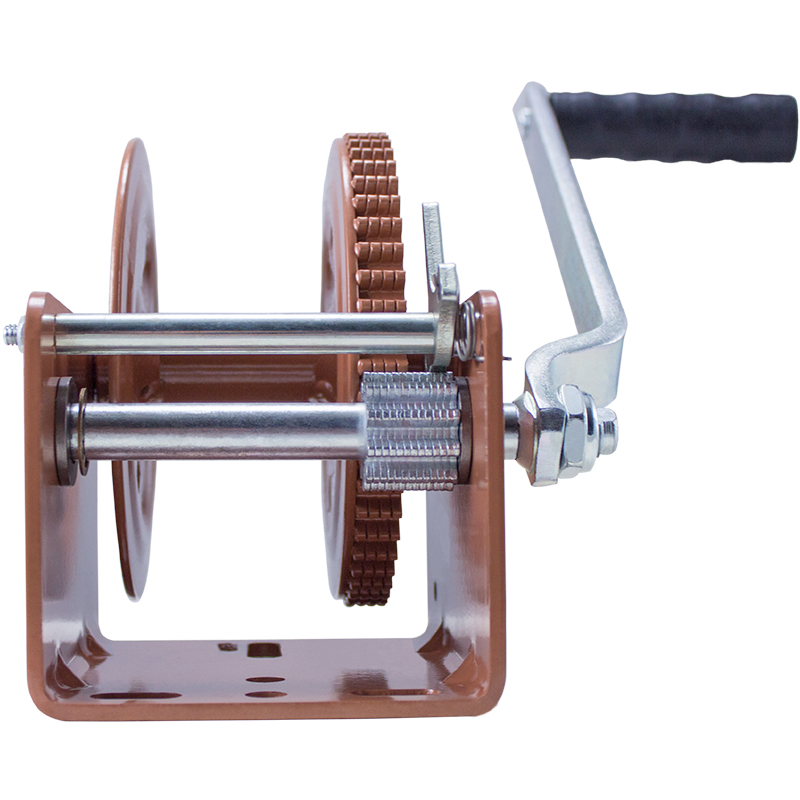

DL1802A Pulling Winch | Bronze

Part Number 14602
Price: $67.99
Quantity
+
-
Manufactured in the USA5 Year Limited Warranty
  • Dutton-Lainson® hand/manual/pulling/ratchet winch for horizontal pulling applications
  • 1,800 lb. capacity
  • 9-1/2" offset handle with ergonomic handle grip
  • Freewheel operation for easy line removal
  • Powder coated copper bronze finish, zinc plated TUFFPLATE® finish on hardware

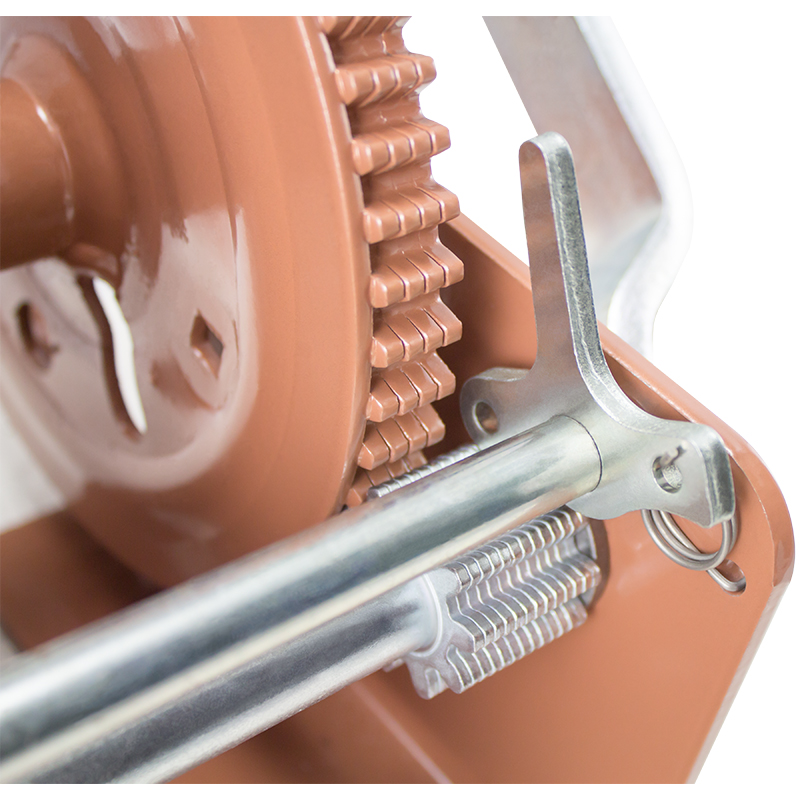

  • Reversible ratchet allows cranking of cable or strap onto winch drum in either direction

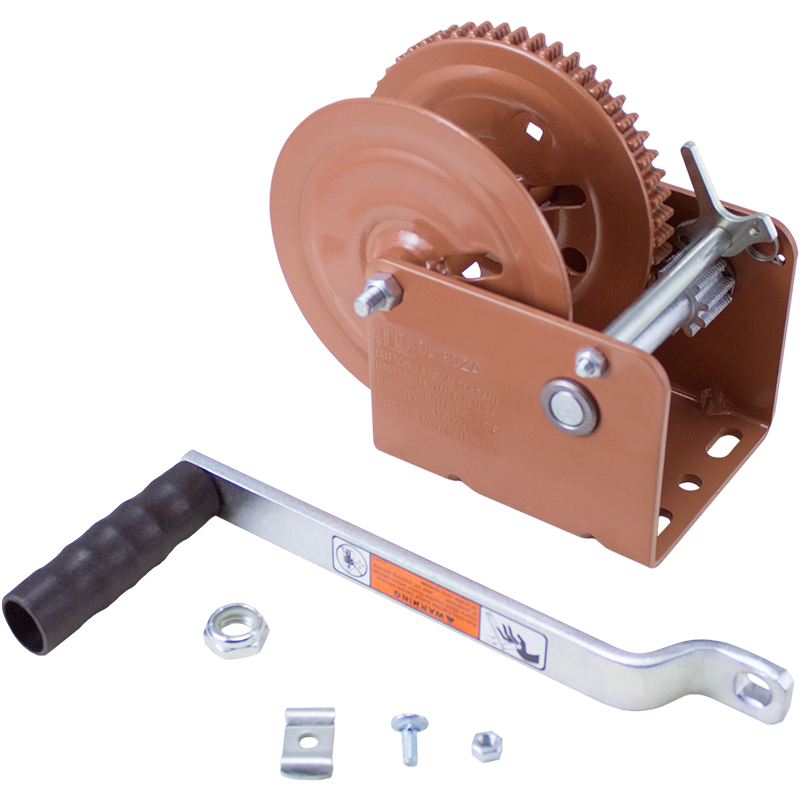

  • Includes clamp kit to install cable onto winch drum
  • Made in the U.S.A.
  • NOTE: This winch is built for horizontal pulling applications. For vertical lifting applications, order a brake winch, a worm gear winch, or a StrongArm® electric winch without a clutch lever.
Details

Dutton-Lainson Company pulling winches are best suited for boat trailer and other horizontal pulling applications which require the freewheeling features of ratchet type winches. Features include:

  • Laminated, high carbon steel gears for longer life
  • All gears in models DLx1200 through DL3500B are heat treated for increased strength
  • Permanently lubricated bearings on drive shafts are maintenance-free
  • Heavy duty steel handles with ergonomic molded grips
  • Drive shaft gears are copper brazed for durability
  • Rigid, welded reel construction for added strength
  • Load matched gear ratios for easier cranking
  • All plated parts are zinc plated TUFFPLATE® finish
  • Slotted mounting holes for easy installation
  • All models except DL400 have heavy gauge embossed and reinforced steel bases for extra strength
  • Ratcheting handle is available for models DL1602A, DL1802A, and DLx1900 when cranking space is limited
  • Winches freewheel when the ratchet pawl is disengaged
  • All models except DL3500B are equipped with slots in reel for easy installation of optional strap (strap sold separately)
  • Available in powder coated copper bronze or zinc plated TUFFPLATE® finish

D-L pulling winches are not recommended for lifting applications. For lifting, use a D-L brake or worm gear winch. D-L winches are not to be used as hoists for lifting, supporting, or transporting people, or for loads over areas where people could be present.
