Dutton-Lainson Company

A Dependable Company Since 1886

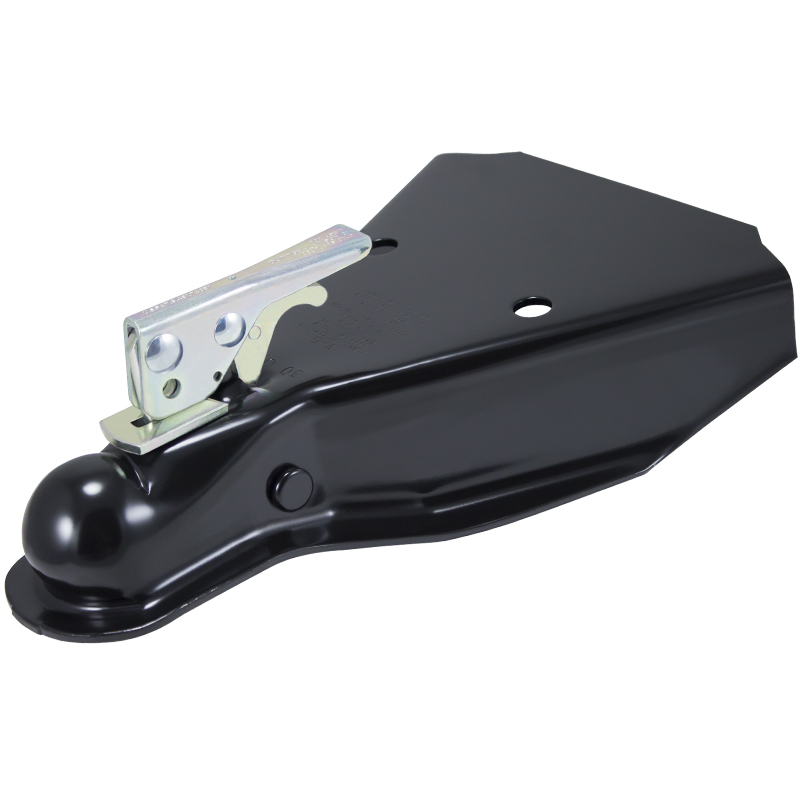

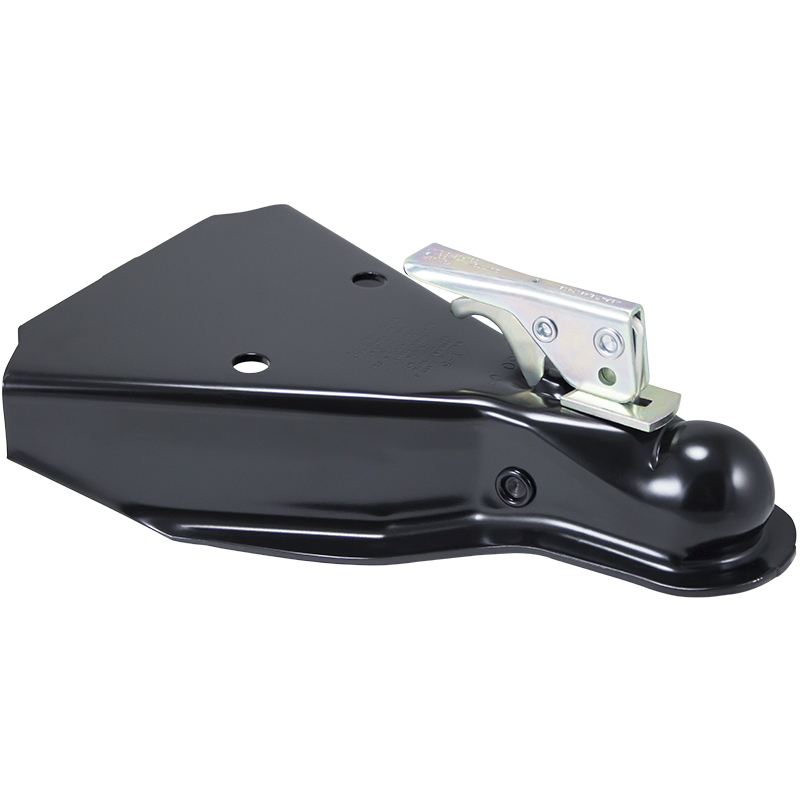

990-3 A-frame Coupler | 2 in. Ball | No Jack Hole

Part Number 14007
Price: $43.99
Quantity
+
-
Manufactured in the USA
  • Dutton-Lainson® A-frame coupler for boat and other trailer applications
  • SAE Class 3 (for gross trailer weights up to 5,000 lbs.)
  • Fits a 2" hitch ball
  • Black enamel coated finish
  • Exclusive Quick-Lock ball clamp assembly can be easily adjusted without tools
  • Repair kit is available to quickly replace all parts except for the housing
  • U.S. Pat. 6,481,740 B1
  • No jack hole
  • Made in the U.S.A.
  • WARNING: Every time coupler is used, make certain ball is completely engaged in socket and coupler is securely locked. Failure to do so could result in serious or fatal injury.
Details

A key element of easy hitching, unhitching, and safe trailer towing is having a strong and efficiently operating coupler system properly installed on the tongue of your trailer, and D-L die formed couplers are built to the highest industry standards. All models (except 998-4) offer an exclusive Quick-Lock ball clamp assembly that can be adjusted without needing wrenches. This feature provides a precise fit on the hitch ball while the trigger action release allows fast locking and unlocking of the ball clamp for convenient hitching. The lock lever is held securely closed by cam action and the safety latch. Features include:

  • Quick-Lock ball clamp assembly provides a precise fit for proper towing and adjusts without the aid of tools
  • Safety lever snaps shut and cannot unlatch itself
  • Meets all requirements for SAE J684 and VESC V-5 standards for class 1, 2, 3, and 4
  • Easily and quickly unlocked by a trigger action release on the safety lever
  • A padlock may be inserted through a hole in the lever if security against trailer theft is desired
  • A-frame couplers are designed to be mounted on frame members set at 50 degrees
Owner's Manual
